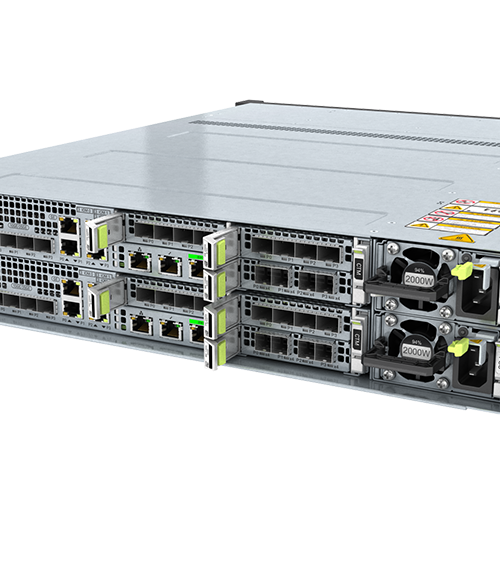

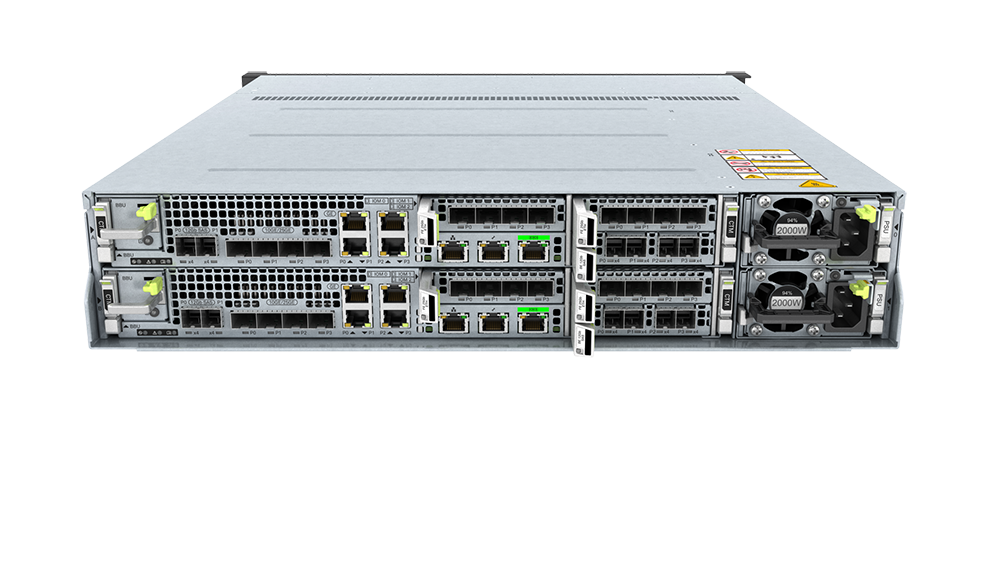

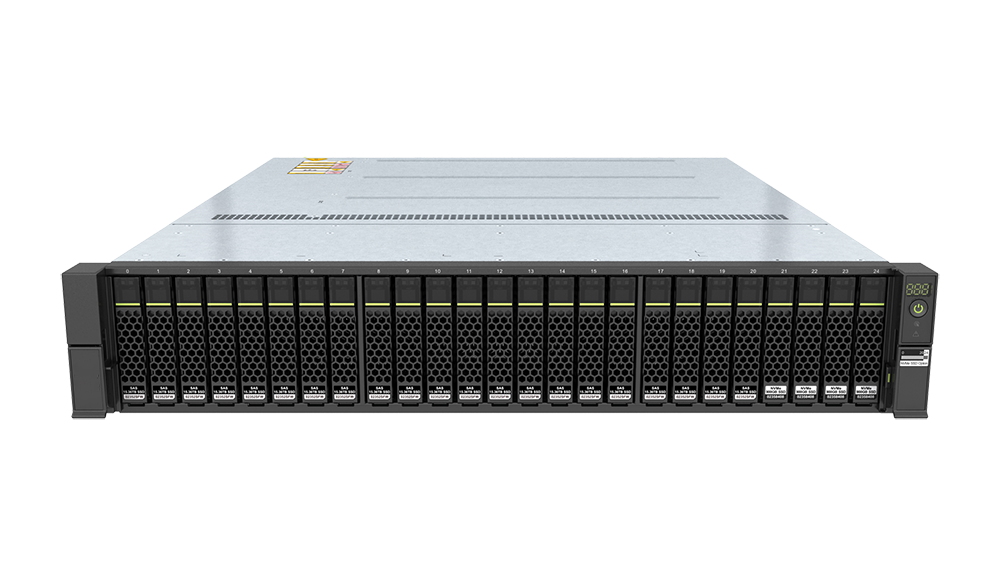

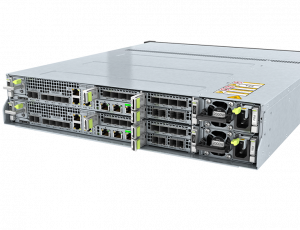

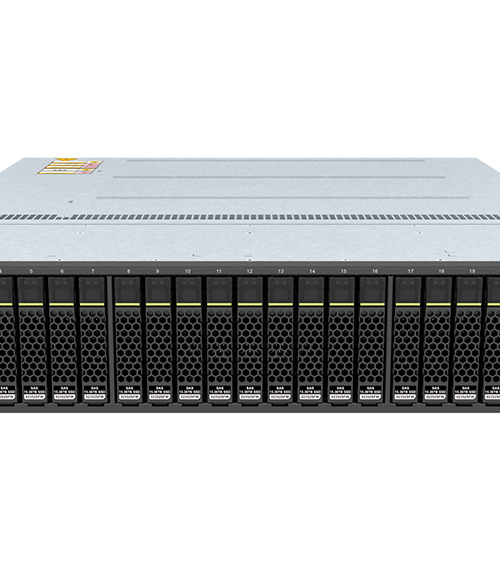

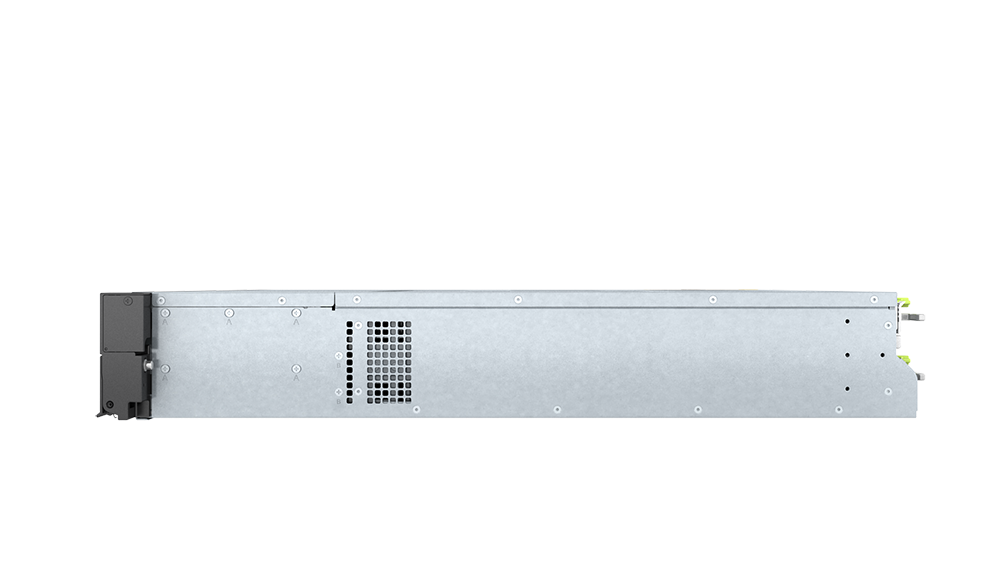

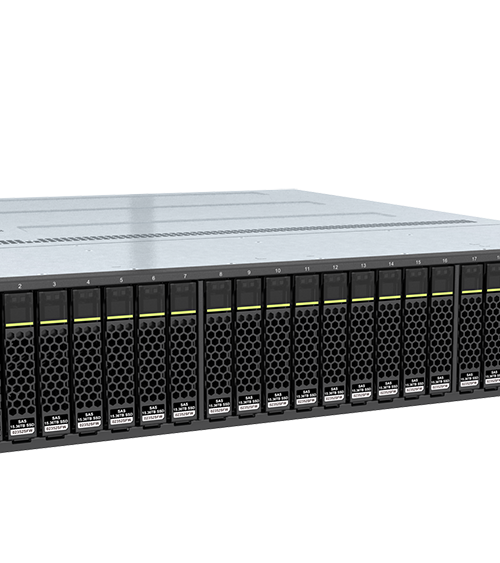

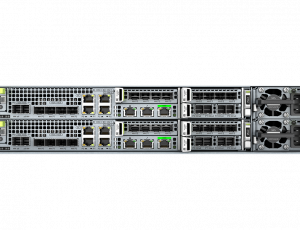

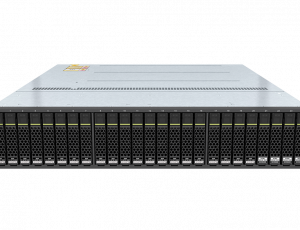

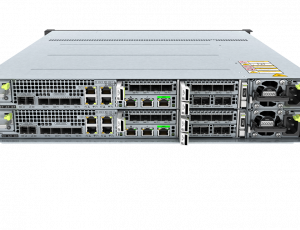

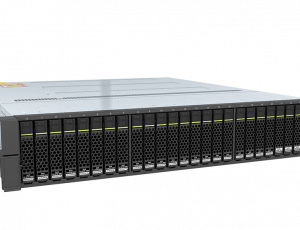

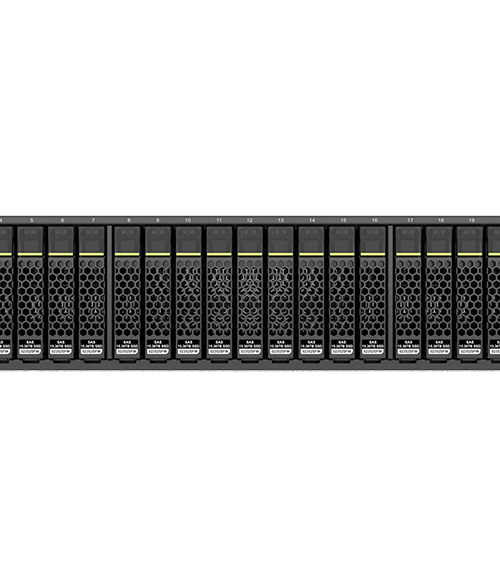

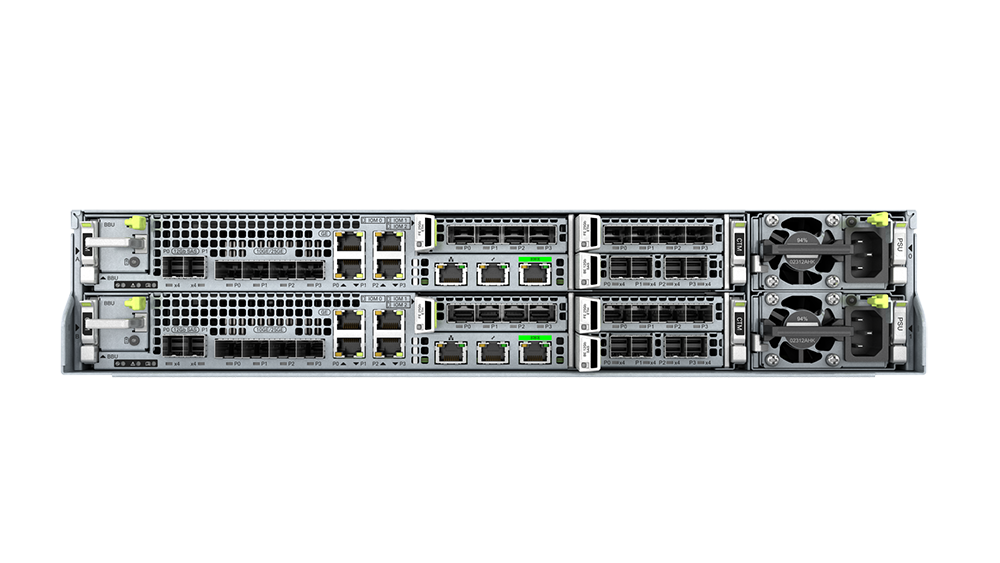

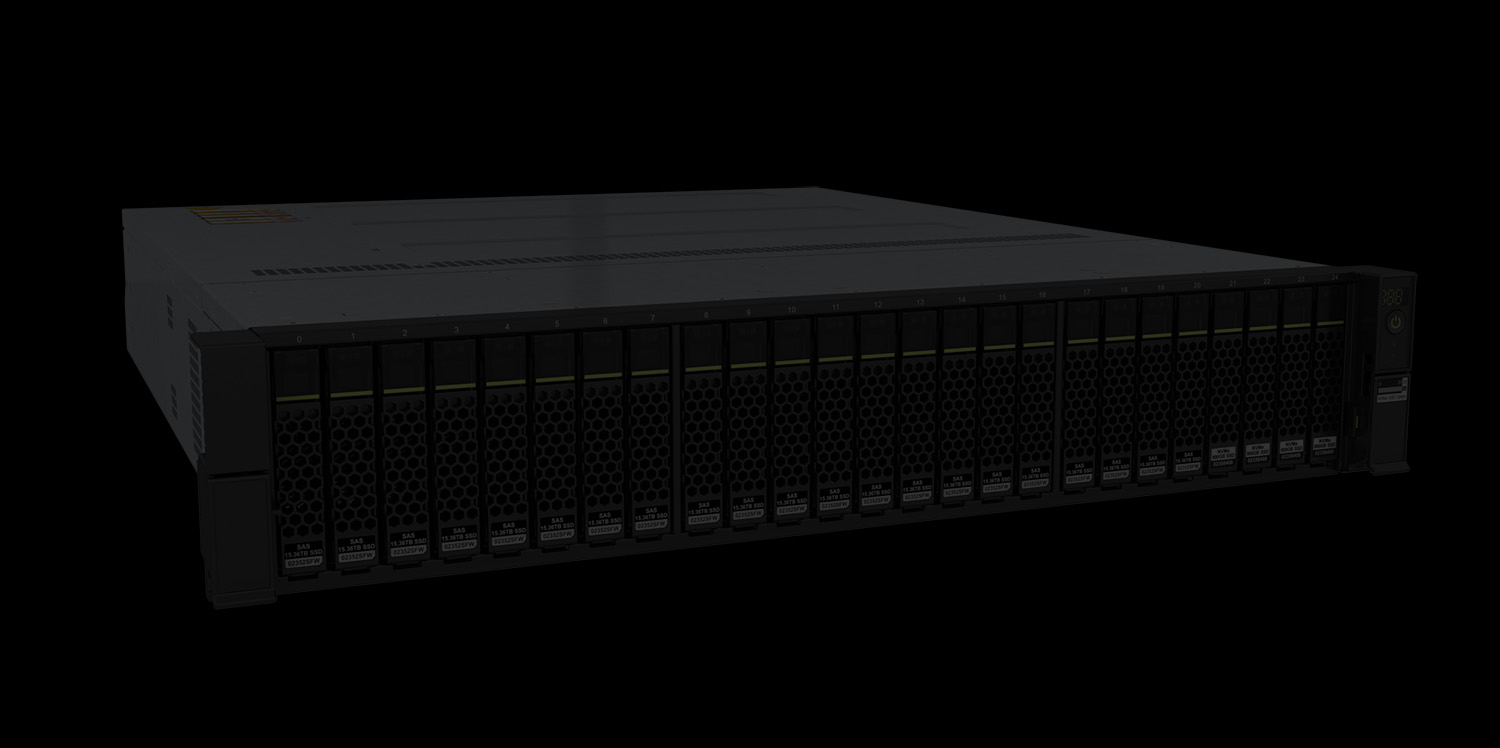

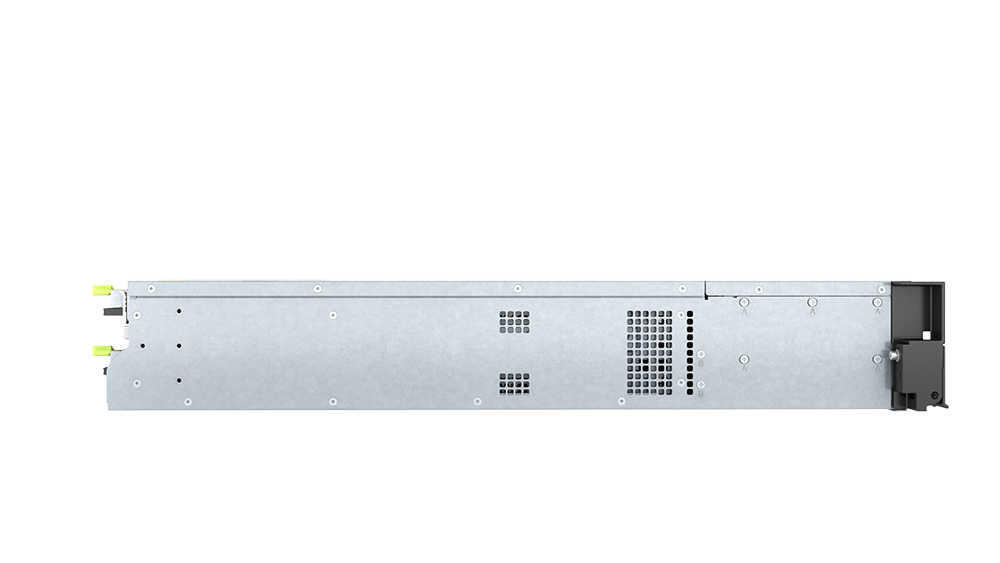

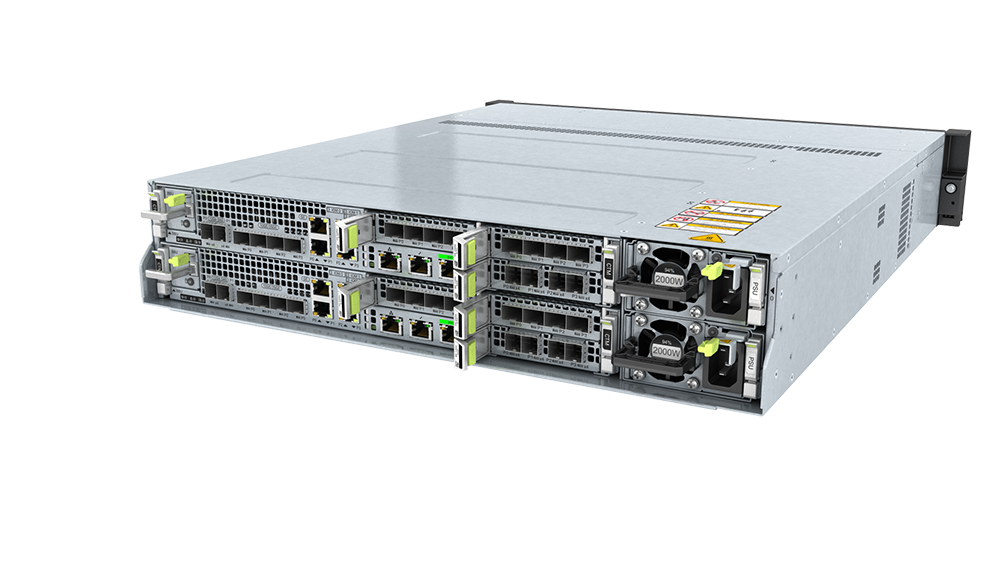

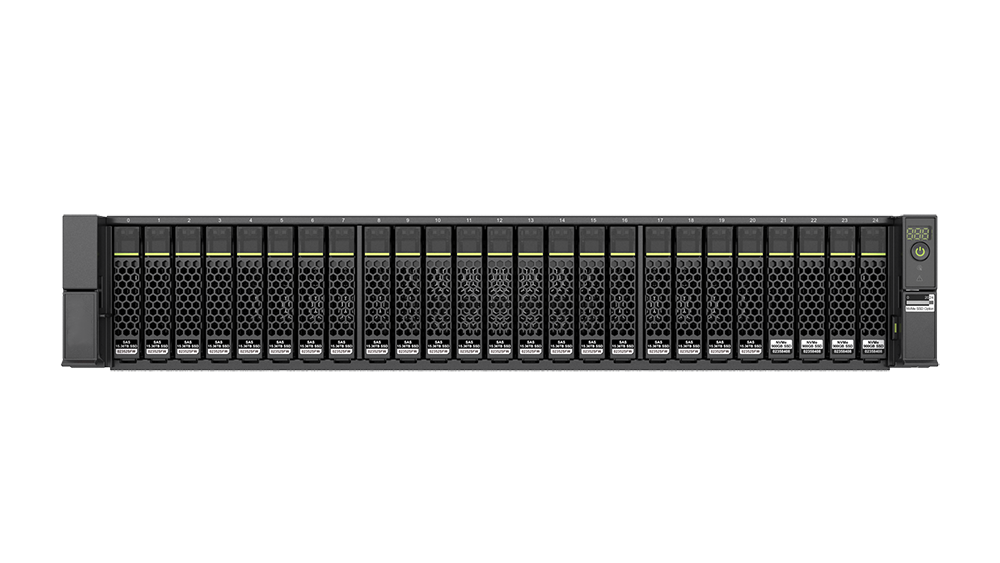

Addon M is an entry-level storage system in the Addon all-flash series. It leverages an innovative hardware platform, FlashLink® intelligent algorithms, and end-to-end (E2E) NVMe architecture, which combine to deliver a 50% higher performance than the previous generation at an ultra-low 0.05 ms latency. The INTELLIGENT algorithms are built into the storage system to make storage more intelligent during the application operations. Furthermore, the all active-active (A-A) architecture and simplified GUI design help simplify Operations and Maintenance (O&M).
Excelling in scenarios such as virtualization, OA, and branches, Addon M is a trusted option for small and medium-sized businesses (SMBs) in the carrier, finance, government, manufacturing, and other fields. The storage system is ideal for IT applications of SMBs with cost-effective services.
50% higher performance than the previous generation
Extensive intelligent software features (Smart series)
System configuration success in 3 steps and resource readiness in 5 minutes
| Modell | Addon M All-Flash Storage System | Addon L All-Flash Storage System | Addon XL All-Flash Storage System |
|---|---|---|---|
| Hardware-Spezifikationen | |||
| Maximale Anzahl von Controllern | 16* | ||
| Maximaler Cache (Zwei Controller, mit der Anzahl der Controller erweiterbar) | 192 GB - 1536 GB | 256 GB - 4 TB | 1-8 TB |
| Unterstützte Schnittstellenprotokolle | FC, iSCSI, NFS*, CIFS* | ||
| Front-End-Porttypen | 8/16/32 Gbit/s FC/FC-NVMe* und 10/25/40/100 Gbit/s Ethernet 25G NVMe over RoCE* | 8/16/32 Gbit/s FC/FC-NVMe* und 10/25/40/100 Gbit/s Ethernet 25G/100G NVMe over RoCE* | |
| Back-End-Port-Typen | NVMe Over Fabric/100G RDMA/SAS 3.0 | ||
| Maximale Anzahl von Hot-Swap-fähige I/O Module pro Controller-Gehäuse | 6 | 12 | |
| Maximale Anzahl von Front-End-Ports per Controller-Gehäuse | 40 | 48 | |
| Maximale Anzahl von SSDs | 1.200 | 1.600 | 2.400 |
| SSDs | 1.92 TB/3.84 TB/7.68 TB/15.36 TB* palm-sized NVMe SSDs 960 GB/1.92 TB/3.84 TB/7.68 TB/15.36 TB SAS SSDs |
||
| SCM Supported | 800 GB SCM* | ||
| Software Specifications | |||
| Supported RAID Levels | RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failures of 3 SSDs) | ||
| Number of LUNs | 8,192 | 16,384 | 32,768 |
| Value-Added Features | SmartDedupe, SmartVirtualization, SmartCompression, SmartMigration, SmartThin, SmartQoS, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, CloudBackup*, SmartTier*, SmartCache*, SmartQuota*, SmartMulti-Tenant*, SmartContainer* | SmartDedupe, SmartVirtualization, SmartCompression, SmartMigration, SmartThin, SmartQoS, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, CloudBackup*, SmartTier*, SmartCache*, SmartQuota*, SmartMulti-Tenant* | |
| Storage Management Software | DeviceManager UltraPath eService |
||
| Physical Specifications | |||
| Power Supply | Controller enclosure: 200V–240V AC±10%, 192V–288V DC SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC | SAS SSD enclosure: 100V–240 V AC±10%, 192V–288V DC Controller enclosure/Smart SAS disk enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 100–240V AC±10%,192V–288V DC, 260V–400V DC | SAS SSD enclosure: 100V–240V AC±10%, 192V–288V DC Controller enclosure/Smart SAS SSD enclosure/Smart NVMe SSD enclosure: 200V–240V AC±10%, 192V–288V DC, 260V–400V DC |
| Dimensions (H x W x D) | SAS controller enclosure: 86.1 mm x 447 mm x 520 mm NVMe controller enclosure: 86.1 mm x 447 mm x 620 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm NVMe SSD enclosure*: 86.1 mm x 447 mm x 620 mm | SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm x 447 mm x 520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm | SAS controller enclosure: 86.1 mm × 447 mm × 820 mm NVMe controller enclosure: 86.1 mm × 447 mm × 920 mm SAS SSD enclosure: 86.1 mm × 447 mm × 410 mm Smart SAS SSD enclosure: 86.1 mm × 447 mm ×520 mm NVMe SSD enclosure: 86.1 mm x 447 mm x 620 mm |
| Weight | SAS controller enclosure: ≤ 30 kg NVMe controller enclosure: ≤ 32 kg SAS SSD enclosure: ≤ 20 kg NVMe smart SSD enclosure: ≤ 35 kg | SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg | SAS controller enclosure: ≤ 45 kg NVMe controller enclosure: ≤ 50 kg SAS SSD enclosure: ≤ 20 kg Smart SAS SSD enclosure: ≤ 30 kg Smart NVMe SSD enclosure: ≤ 35 kg |
| Operating Temperature | –60 m to +1800 m altitude: 5°C to 35°C (bay) or 40°C (enclosure) 1800 m to 3000 m altitude: The max. temperature threshold decreases by 1°C for every altitude increase of 220 m |
||
| Operating Humidity | 10% RH to 90% RH | ||
